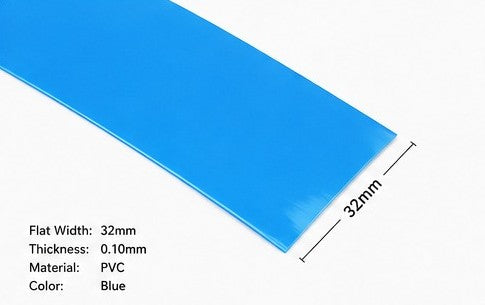

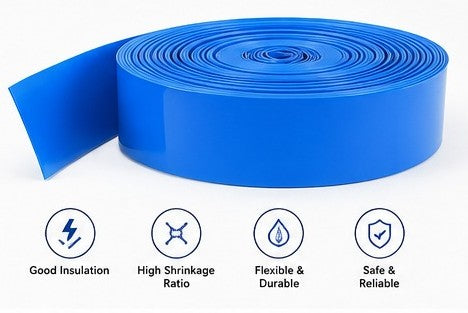

PVC Heat Shrink tube 32mm 100mtr

PVC Heat Shrinkable Tubing is a flexible and durable electrical insulation sleeve designed to provide reliable protection for wires, cables, battery terminals, connectors and electrical components. When heated, the tubing shrinks tightly around the component to provide a secure, insulating and protective covering.

Ideal for EV battery packs, electrical wiring, automotive applications, electronics and industrial assemblies, it provides protection against moisture, abrasion, dust and accidental electrical contact.

Key Features

• High-quality PVC heat shrinkable material

• Provides reliable electrical insulation

• Heat-shrink design for tight and secure fitting

• Good resistance to moisture and water

• Flame-retardant properties

• Protects against abrasion, dust and mechanical damage

• Flexible and easy to cut and install

• Suitable for covering battery cells, busbars, terminals and wiring

• Clean and professional finish after shrinking

• Available in multiple widths and sizes

Specifications

Applications

• EV Battery Packs

• Lithium-ion Battery Assemblies

• Battery Cell Insulation

• Busbar & Terminal Insulation

• Automotive Wiring

• Motor & Controller Wiring

• Electrical Panels

• Connectors & Cable Joints

• PCB & Electronic Components

• Industrial Electrical Equipment

• DIY Electrical Projects

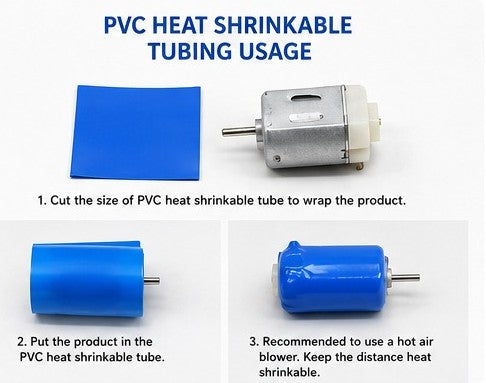

How to Use

1. Select the correct size
Choose tubing with an initial diameter larger than the component or cable you want to cover.

2. Cut to required length
Cut the sleeve slightly longer than the area requiring protection.

3. Position the tubing
Slide the tubing over the wire, terminal, connector or component.

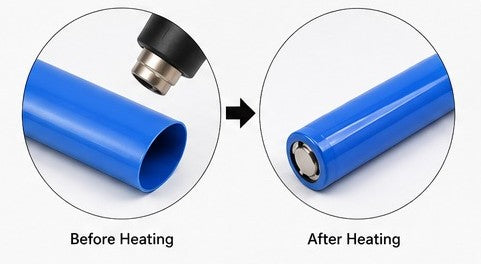

4. Apply heat
Use a heat gun and apply uniform heat around the tubing. Avoid concentrating excessive heat at one point.

5. Allow it to shrink
The PVC sleeve will contract and conform closely to the component, creating a secure protective layer.

Ideal for EV & Battery Applications

The tubing is particularly useful for battery pack assembly, where it can be used for insulating individual cells, busbars, terminals and exposed conductive areas. It helps prevent accidental short circuits while providing additional mechanical and environmental protection.

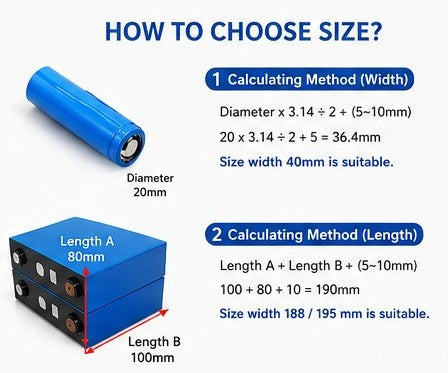

Size Selection

Select the tubing based on the diameter/width of the component before shrinking. The tubing should be large enough to slide over the component but small enough to provide a tight fit after heating.

Available sizes: Multiple sizes available — select the required size from the product options.

Product Highlights

Product Type: PVC Heat Shrinkable Tubing
Material: PVC
Colour: Blue
Application: Insulation & Protection
Suitable For: EV, Automotive, Battery & Electrical Applications

Note: Actual shrink ratio, temperature rating, dielectric properties, flame-retardant classification and dimensions may vary depending on the selected size/grade. Refer to the specification of the selected variant before use.
