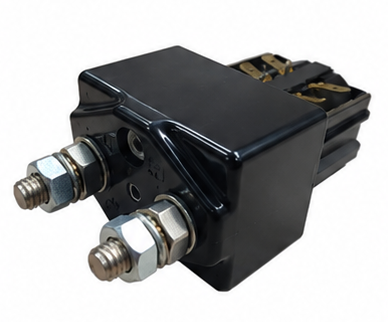

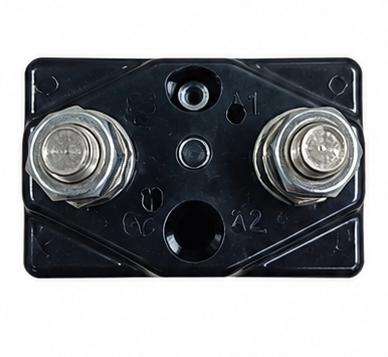

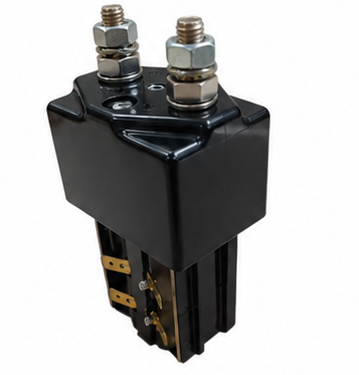

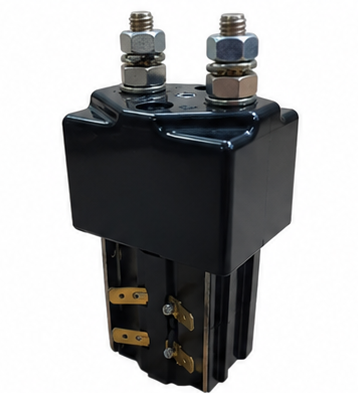

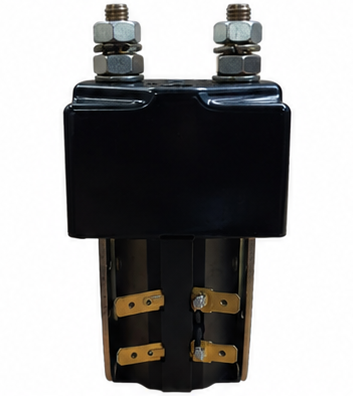

150A/200A - 12V Coil HV-DC Contactor

A high-current electromagnetic DC contactor designed for reliable switching and isolation in electric vehicles, battery systems, forklifts, stackers, platform trucks, solar systems and industrial DC power applications.

Available in 150 A and 200 A current ratings, with multiple coil voltage options from 12 V to 110 V, making it suitable for a wide range of battery and control systems.

Key Features

• Current Rating: 150 A / 200 A

• Coil Voltage: 12 V, 24 V, 30 V, 36 V, 48 V, 60 V, 72 V & 110 V

• Pick-Up Voltage: 50% of rated coil voltage

• Drop-Out Voltage: 10–15% of rated coil voltage

• Pull-In Time: Approx. 30 ms

• Drop-Out Time: Approx. 10 ms

• Coil Current: ≤ 800 mA

• Contact Voltage Drop: 30–35 mV per 100 A

• Operating Temperature: -30°C to +60°C

• Storage Temperature: -40°C to +80°C

• Insulation Resistance: ≥100 MΩ at 500 VDC

Current Capacity

• Continuous thermal rating: 200 A

• 30% duty cycle: 320 A

• 50% duty cycle: 280 A

• 70% duty cycle: 230 A

Applications

• Electric vehicles (EVs)

• EV battery packs

• Battery energy storage systems

• Forklifts and stackers

• Platform trucks

• Solar power systems

• Industrial DC power systems

• Battery isolation and switching applications

Suitable for high-current DC switching where reliable electrical isolation and fast switching response are required.
